Zhiyun FIVERAY M40 SE Bi-Color LED Light Panel

Zhiyun FIVERAY M40 SE Bi-Color LED Light Panel
Regular price RM359.00

Description

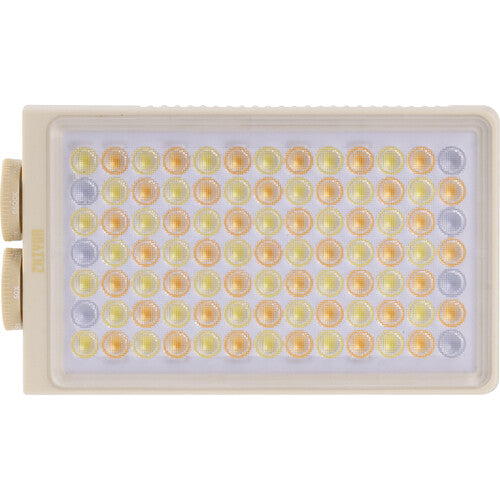

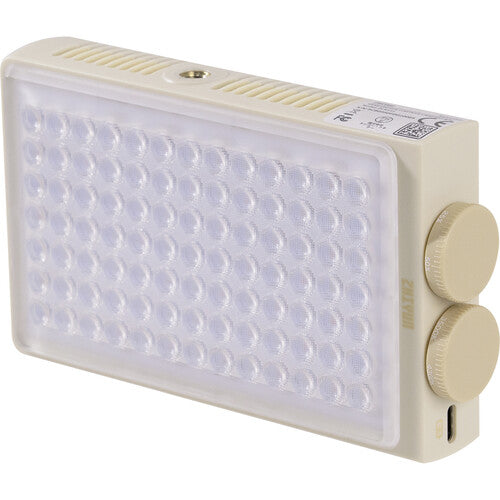

The Zhiyun FIVERAY M40 SE Bi-Color LED Light Panel is a compact, high-output lighting solution designed for content creators, vloggers, and mobile production workflows. Utilizing an array of 84 individually lensed LEDs, the M40 SE delivers concentrated, efficient illumination with output reaching 4260 lux at 3.3' (6500K). Its wide 2700 to 8500K color temperature range allows seamless matching to tungsten, daylight, and mixed lighting environments, supported by high color accuracy ratings including CRI 95, TLCI 97, and SSI 74 for faithful skin tones and color reproduction.

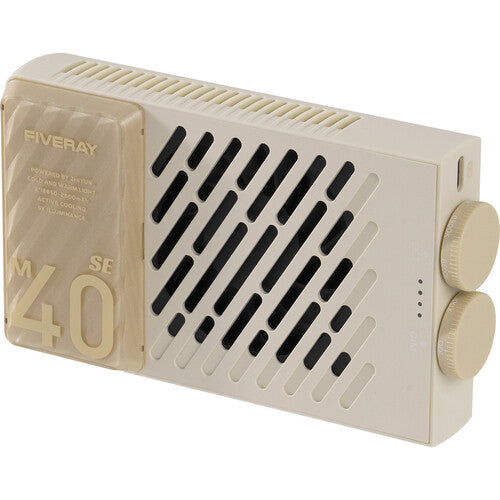

Engineered for intuitive operation and portability, the M40 SE features dual onboard control knobs for independent brightness and color temperature adjustment, enabling fast, precise control without menu navigation. A built-in 2600mAh battery powers the fixture for up to 44 minutes at full output and supports continuous operation while charging via USB-C. Zhiyun's active fan cooling system ensures stable performance during extended high-brightness use, while the lightweight 8.8 oz body integrates a standard 1/4"-20 mounting thread for flexible rigging. The included hard-shell and silicone diffusers provide versatile light shaping for softer portrait and product lighting, and the hot shoe to ball head adapter supports quick camera-mounted setups.

Details

High-Powered Lighting

  • Output up to 4260 lux at 3.3’ and 17,100 lux at 1.6’
  • 2700 to 8500K adjustable bi-color range
  • Continuous 0 to 100% dimming
  • High color accuracy: CRI 95, TLCI 97, CQS 95, SSI 74

Portable Performance

  • Built-in 2600mAh, 19.2Wh rechargeable battery
  • Up to 44 minutes of runtime at 100% brightness or 1.5 hours at 50% brightness
  • USB-C power input with 1.6-hour charge time via QC

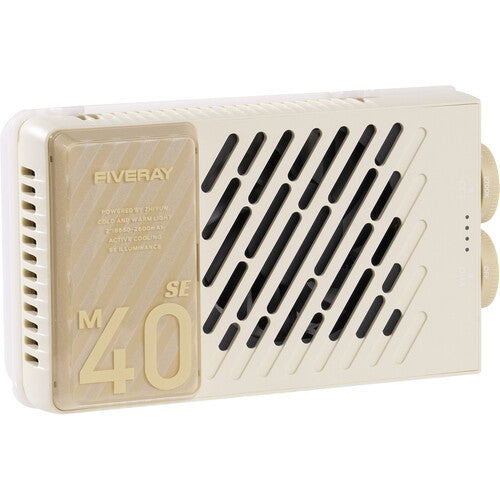

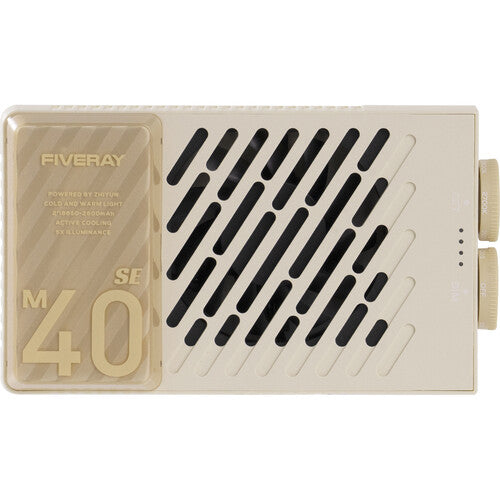

  • Active fan cooling with an electronic back-pressure system
  • Compact, lightweight design optimized for mobile shooting setups

Mounting and Accessories

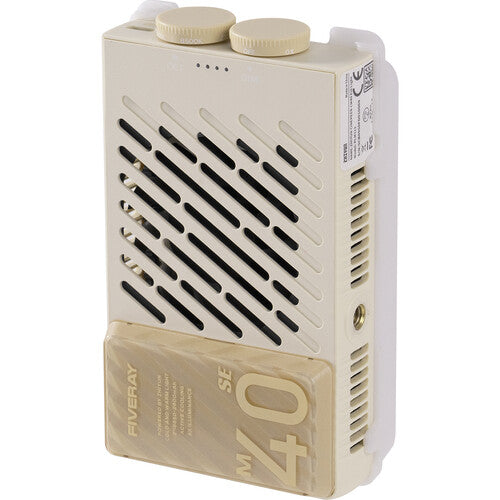

  • Integrated 1/4"-20 female mounting thread
  • Cold shoe to ball head mount adapter with 1/4"-20 male screw

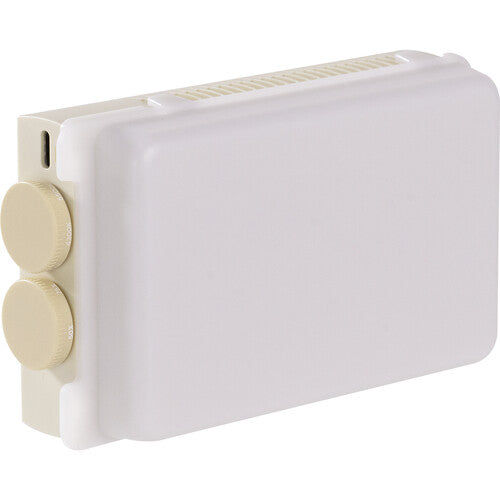

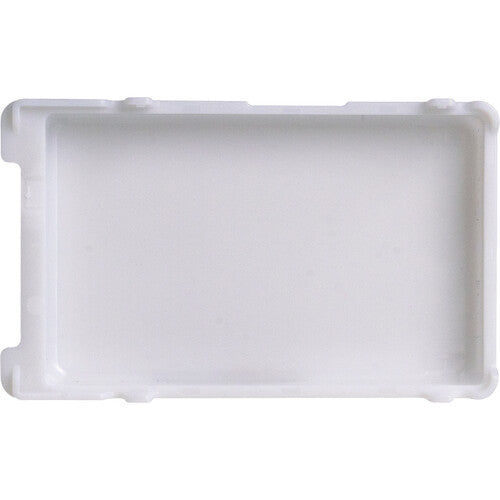

  • Hard-shell diffuser for structured soft light

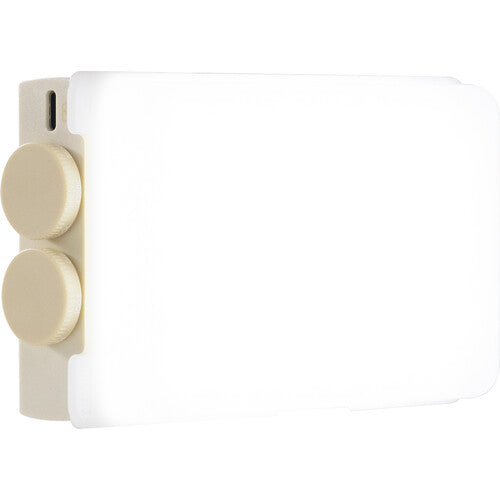

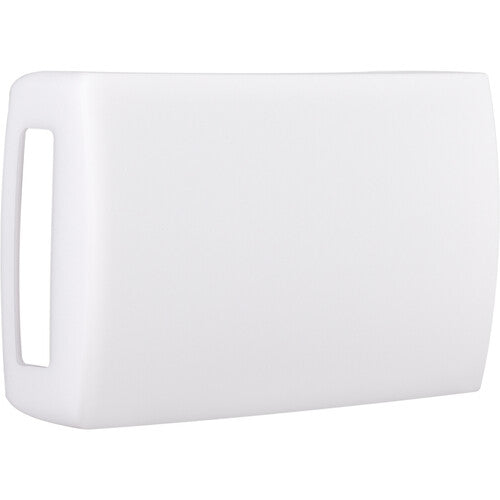

  • Silicone diffuser for broader, softer diffusion



Technical Specs

Item Type

1x LED Array LED Light Panel

Included Light Modifier

2x Diffuser

Included Storage Case

No

Photometrics at 3.3' / 1 m

3500K: 378 fc / 4070 Lux (Unmodified)
5500K: 392 fc / 4220 Lux (Unmodified)
3500K: 36 fc / 388 Lux (with Diffuser)
5500K: 37 fc / 402 Lux (with Diffuser)

Show More

Color Temperature

2700 to 8500K

Color Modes

Daylight, Tungsten

Color Accuracy Standard

CRI 95
TLCI 97
CQS 95
SSI 74
TM-30 Rf 90
TM-30 Rg 100

Show More

Dimming

Built-In Dimmer (Continuous)
 • 0 to 100%

Front Accessory Mount

No

Power Source

Battery (Built-In)

Battery

2x 18650 (Built-In)

Power Consumption

33 W (Maximum)

Fixture Mounting

1x 1/4"-20 Female Thread

Light Fixture

Item Type

1x LED Array LED Light Panel

Included Light Modifier

2x Diffuser

Included Storage Case

No

Photometrics

3500K:
378 fc / 4070 Lux at 3.3' / 1 m (Unmodified)
50 fc / 533 Lux at 9.8' / 3 m (Unmodified)
16 fc / 174 Lux at 16.4' / 5 m (Unmodified)
5500K:
392 fc / 4220 Lux at 3.3' / 1 m (Unmodified)
53 fc / 566 Lux at 9.8' / 3 m (Unmodified)
17 fc / 185 Lux at 16.4' / 5 m (Unmodified)
3500K:
36 fc / 388 Lux at 3.3' / 1 m (with Diffuser)
147 fc / 1580 Lux at 1.6' / 0.5 m (with Diffuser)
5 fc / 50 Lux at 9.8' / 3 m (with Diffuser)
2 fc / 18 Lux at 16.4' / 5 m (with Diffuser)
5500K:
37 fc / 402 Lux at 3.3' / 1 m (with Diffuser)
152 fc / 1640 Lux at 1.6' / 0.5 m (with Diffuser)
5 fc / 53 Lux at 9.8' / 3 m (with Diffuser)
2 fc / 19 Lux at 16.4' / 5 m (with Diffuser)

Color Temperature

2700 to 8500K

Color Modes

Daylight, Tungsten

Color Accuracy Standard

CRI 95
TLCI 97
CQS 95
SSI 74
TM-30 Rf 90
TM-30 Rg 100

Dimming

Built-In Dimmer (Continuous)
 • 0 to 100%

Cooling System

Fan

Built-In Flash

No

Preprogrammed Effects

No

Umbrella Mount

No

Front Accessory Mount

No

Power & I/O

Power Source

Battery (Built-In)

Inputs/Outputs

1x USB-C Female Power Input

Battery

2x 18650, 2600 mAh, 19.2 Wh (Built-In)
 • 44-Minute Runtime at 100% Brightness
 • 1.5-Hour Runtime at 50% Brightness
 • 1.6-Hour Charge Time via USB-C

Battery Charging

1x Charging Cable (Included)

Included Adapter / Cable

1x USB-C Male to USB-C Male Cable

Inline Switch

No

Power Pass-Thru

No

Power Consumption

33 W (Maximum)

Mounting

Fixture Mounting

1x 1/4"-20 Female Thread

Included Adapter

1x Ball Head Mount: Cold Shoe to 1/4"-20 Male Screw

General

Display

No

Environmental Resistance

No

Operating Conditions

14 to 104°F / -10 to 40°C

Storage Conditions

-4 to 140°F / -20 to 60°C

Certifications

CE-RED, EACS-COC, FCC ID, IC, PSE, REACH, RoHS

Materials

Plastic

Dimensions

5.2 x 3.1 x 1.2" / 13.2 x 7.8 x 3.1 cm

Weight

8.8 oz / 250 g
