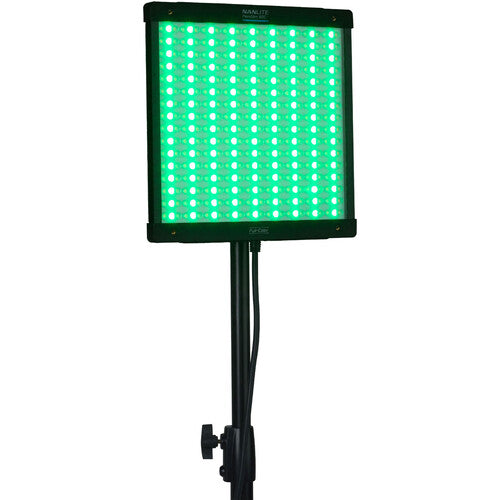

Nanlite PavoSlim 60C RGB LED Panel

Nanlite PavoSlim 60C RGB LED Panel
Regular price RM2,299.00

Description

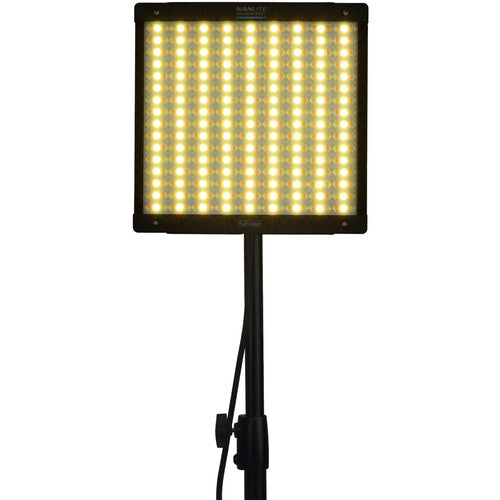

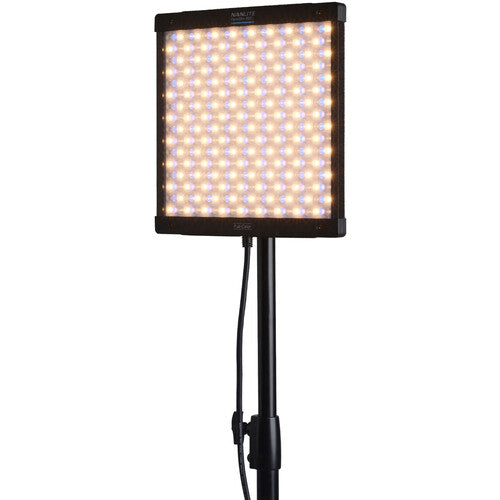

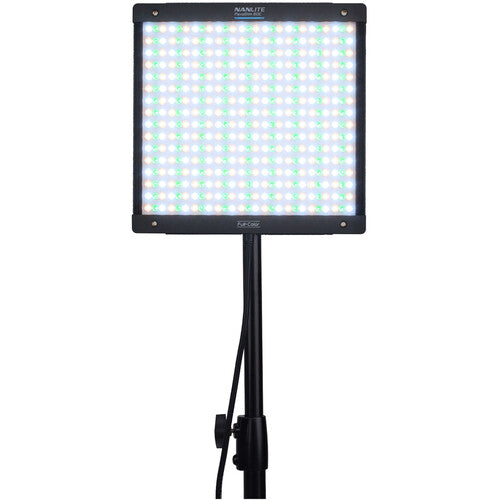

Thin, lightweight, and bright, this 12.1 x 11.8" PavoSlim 60C RGB LED Panel from Nanlite is an ideal choice for shoots where color accuracy and sophisticated control are needed. Offering a wide variable color temperature range of 2700 to 7500K and 0-100% dimming, this slim and powerful panel seamlessly integrates into ambient light situations, letting you match the output of most fixtures.

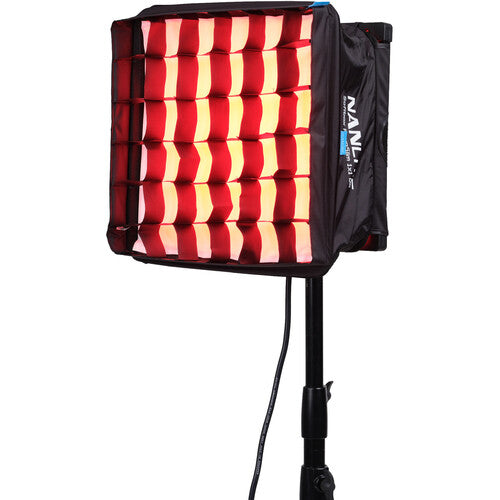

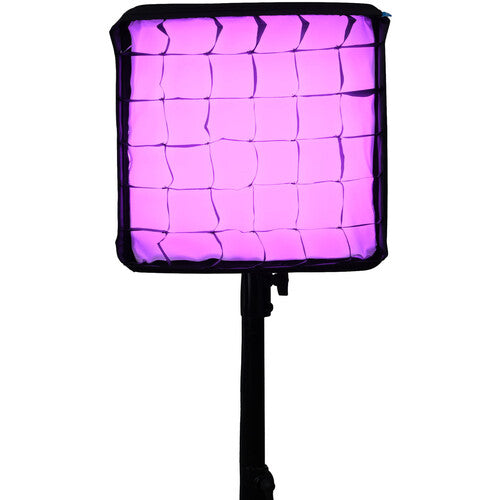

The panel's high CRI/TLCI ratings of 96/97 provide high color accuracy and rendering, and multiple onboard and wireless control options make for easy creative adjustments. Fifteen built-in special effects are included for hue loop, CCT loop, intensity Loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding. Additionally, two diffusers, a softbox, and an eggcrate are also included for modifying and adjusting the panel's output.

Details

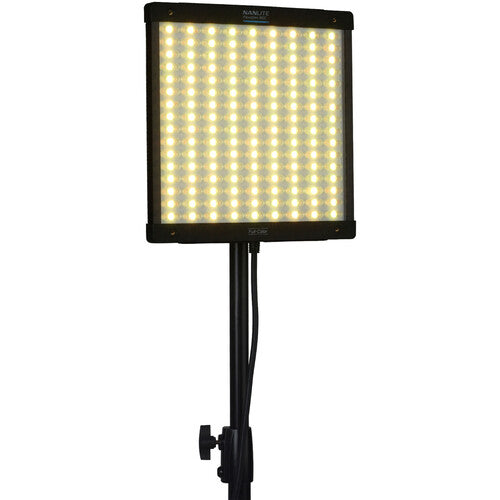

  • Designed for studio, film, and TV productions, this thin and lightweight LED panel provides a bright illumination of 7074 lux at 3.3'.
  • Variable color temperature range of 2700 to 7500K and 0 to 100% dimming.
  • High CRI/TLCI ratings of 96/97 provide high color accuracy and rendering.
  • 15 built-in special effects for hue loop, CCT loop, intensity loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding.
  • Multiple presets for LEE filters.
  • Silent passive cooling for working on sets with sound recording.

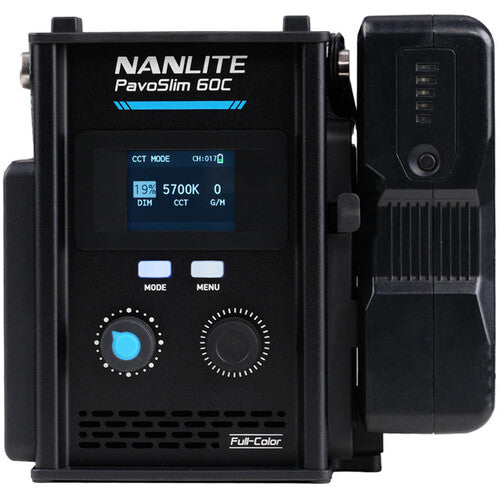

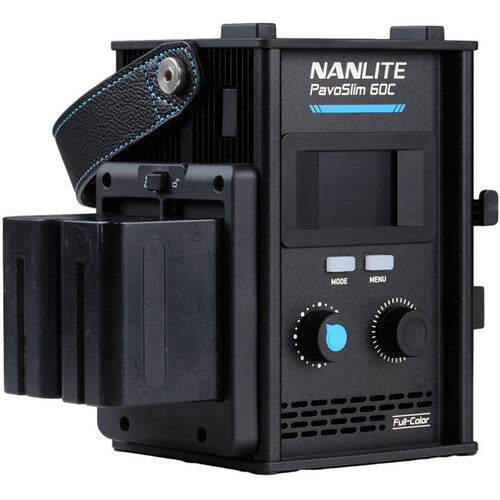

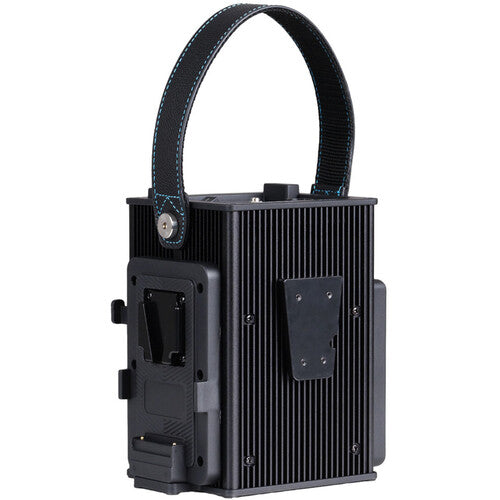

  • Built-in battery plates for one NP-F battery and one V-mount battery.
  • DMX/RDM port, Bluetooth, and wireless RF control options.
  • 4-pin locking plate design to combine panels together to make a larger light source.

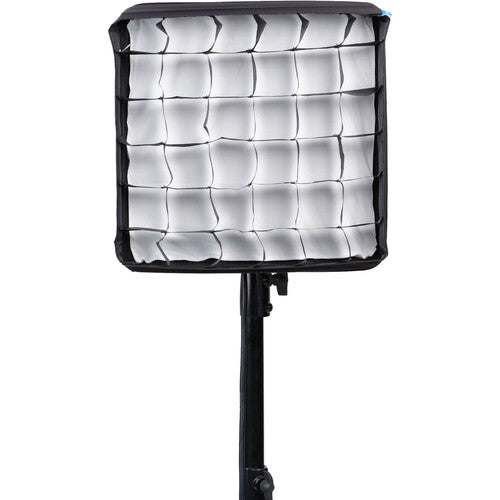

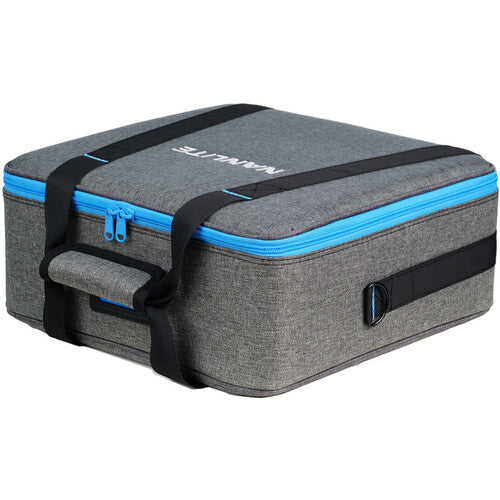

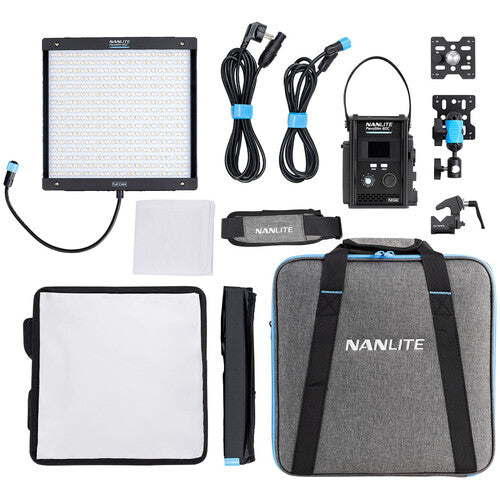

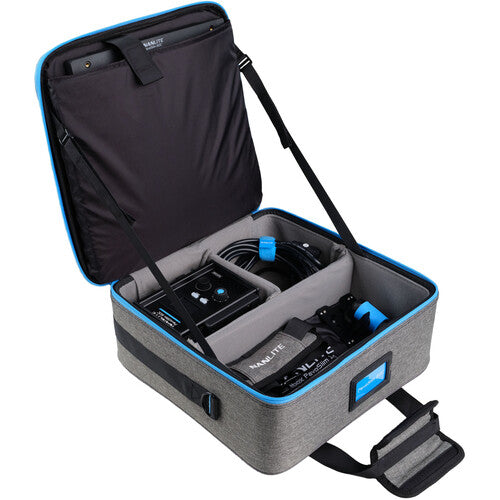

  • Includes two diffusers, a softbox, an eggcrate, and a soft case.
  • Dual-voltage design for worldwide use.
Technical Specs

Item Type

1x LED Array LED Light Panel

Included Light Modifier

1x Softbox
1x Grid/Louver

Included Storage Case

Yes

Photometrics at 3.3' / 1 m

60° at 5600K: 657 fc / 7074 Lux (Unmodified)

Color Temperature

2700 to 7500K

Color Modes

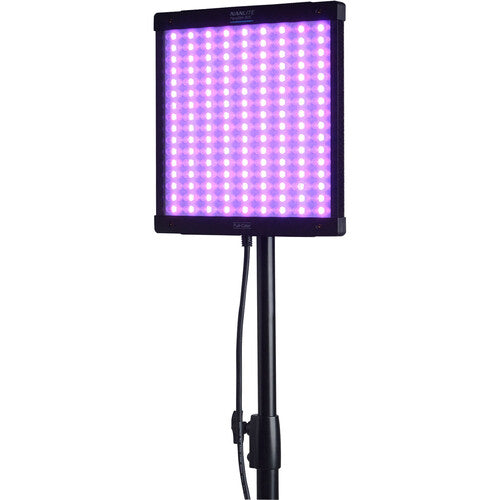

RGB, Daylight, Tungsten

Color Accuracy Standard

CRI 96
TLCI 97

Dimming

App-Controlled / Controller Included / DMX / RDM
 • 0 to 100%

Front Accessory Mount

Proprietary

Wireless Remote Control Type

Bluetooth (Nanlink)
Proprietary Wireless *Remote Not Included
Wireless DMX *Remote Not Included
CRMX (LumenRadio)

Show More

Power Source

AC Power (Cable Included)
Battery (Not Included)

Battery Plate Type

1x V-Mount (Built-In)
1x Sony L-Series / NP-F (Built-In)

Battery

1x V-Mount Rechargeable (Not Included)
or
2x Sony-Type L-Series / NP-F Rechargeable (Not Included)

Input Power

100 to 240 VAC, 50 / 60 Hz

Power Consumption

60 W

Fixture Mounting

Proprietary

Light Fixture

Item Type

1x LED Array LED Light Panel

Included Light Modifier

1x Softbox
1x Grid/Louver

Included Filters

Diffusion, Soft Diffusion

Included Storage Case

Yes

Photometrics

60° at 5600K:
657 fc / 7074 Lux at 3.3' / 1 m (Unmodified)

Color Temperature

2700 to 7500K

Color Modes

RGB, Daylight, Tungsten

Color Accuracy Standard

CRI 96
TLCI 97

Dimming

App-Controlled / Controller Included / DMX / RDM
 • 0 to 100%

Cooling System

No

Built-In Flash

No

Preprogrammed Effects

Yes

Umbrella Mount

No

Front Accessory Mount

Proprietary

Connectivity

Wireless Remote Control Type

Bluetooth (Nanlink)
Proprietary Wireless *Remote Not Included
Wireless DMX *Remote Not Included
CRMX (LumenRadio)

Mobile App Compatible

Yes: Android & iOS
App Name: Nanlink
Functionality: Adjust Settings, Remote Control, Setup

Wireless Frequency

2.4 GHz

Power & I/O

Power Source

AC Power (Cable Included)
Battery (Not Included)

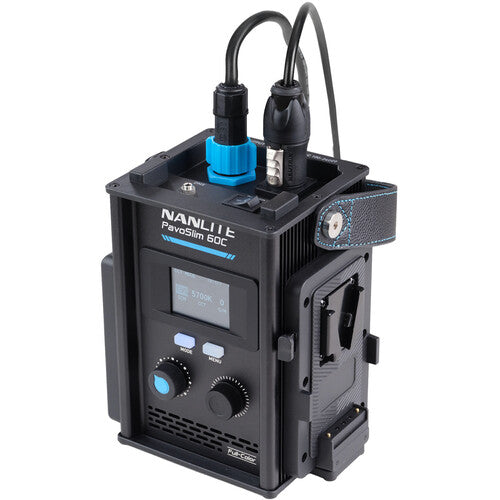

Inputs/Outputs

Light Fixture

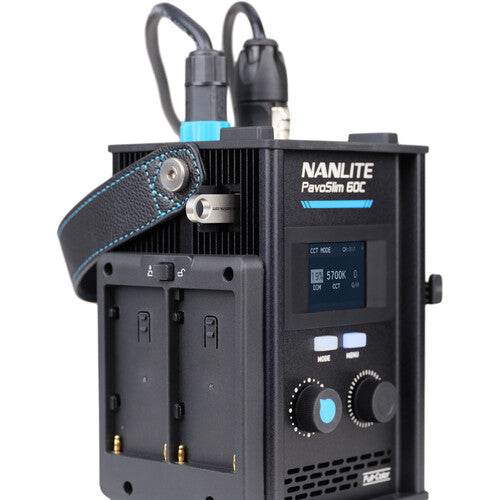

To Power Supply/Controller: 1x Built-In Cable with Unspecified Power Input
Power Supply/Controller
To Light Fixture: 1x Unspecified Power Output
1x Unspecified AC Power Input
1x 1/8" / 3.5 mm Female DMX Input
*Adapter Required (Not Included)

Battery Plate Type

1x V-Mount (Built-In)
1x Sony L-Series / NP-F (Built-In)

Battery

1x V-Mount Rechargeable, 14.4 to 26 VDC (Not Included)
or
2x Sony-Type L-Series / NP-F Rechargeable, 7.4 VDC (Not Included)

Input Power

100 to 240 VAC, 50 / 60 Hz

Included Adapter / Cable

Yes

Inline Switch

No

Power Pass-Thru

No

Power Consumption

60 W

Mounting

Fixture Mounting

Proprietary

Included Adapter

1x Non-Swivel Mount: 5/8" Stud to Proprietary
1x Ball Head Mount: 5/8" Receiver to Proprietary

General

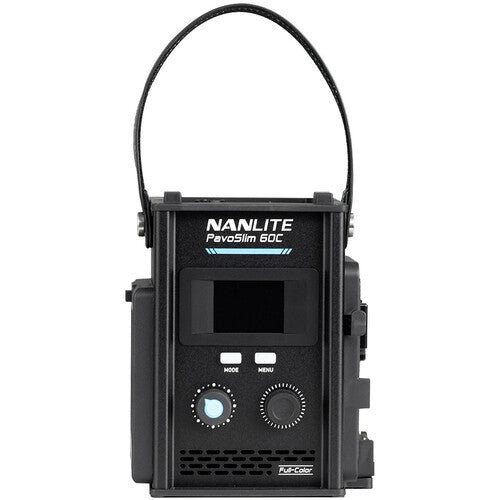

Display

Yes

Environmental Resistance

No

Dimensions

12 x 11.9 x 0.7" / 30.6 x 30.1 x 1.9 cm (Fixture)

Weight

3.9 lb / 1.8 kg (Fixture)
