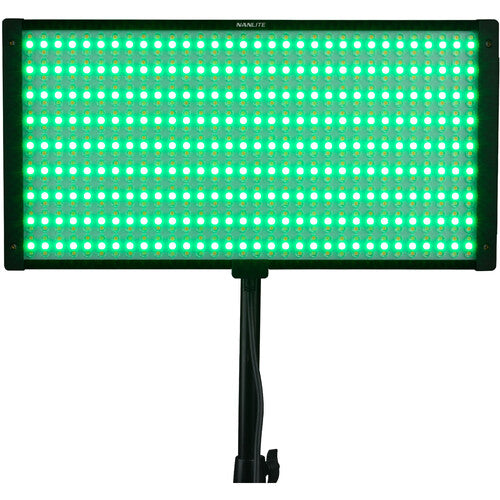

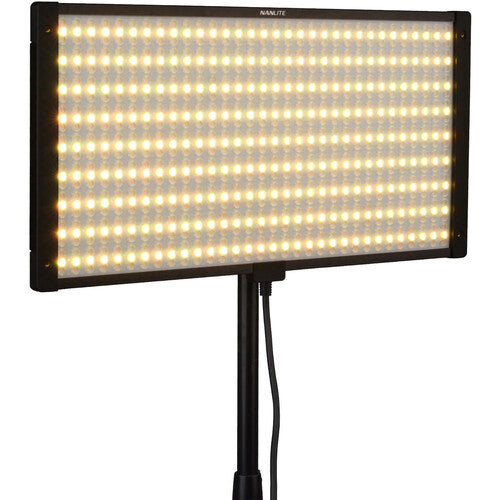

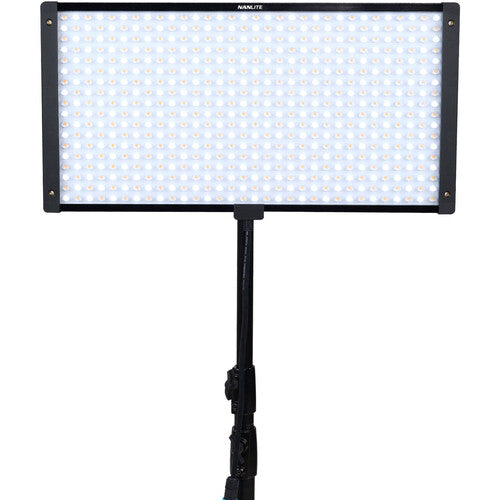

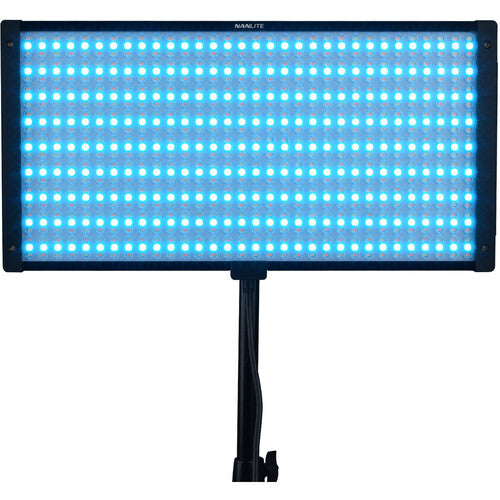

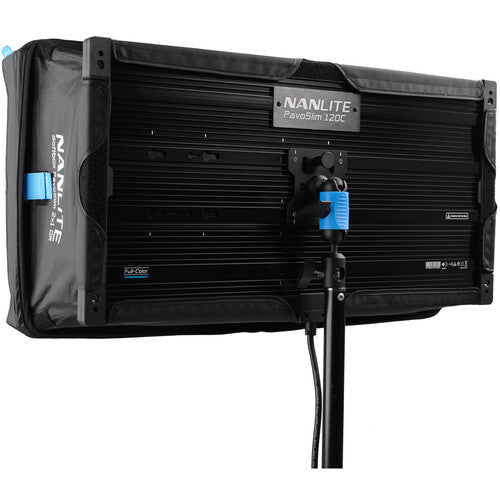

Nanlite PavoSlim 120C RGB LED Panel

Nanlite PavoSlim 120C RGB LED Panel
Regular price RM2,399.00

Description

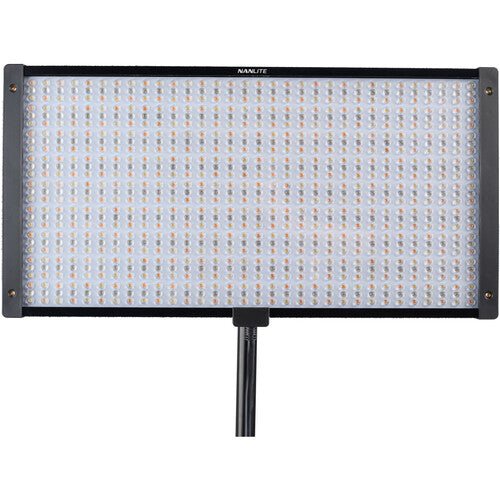

Thin, lightweight, and bright, this 23.7 x 12.1" V-mount PavoSlim 120C RGB LED Panel from Nanlite is an ideal choice for shoots where color accuracy and sophisticated control are needed. Offering a wide variable color temperature range of 2700 to 7500K and 0-100% dimming, this slim and powerful panel seamlessly integrates into ambient light situations, letting you match the output of most fixtures.

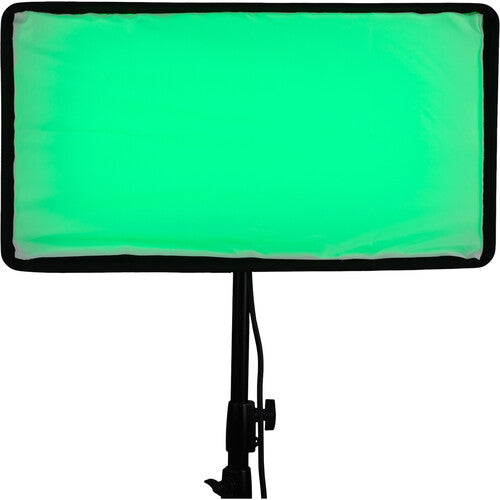

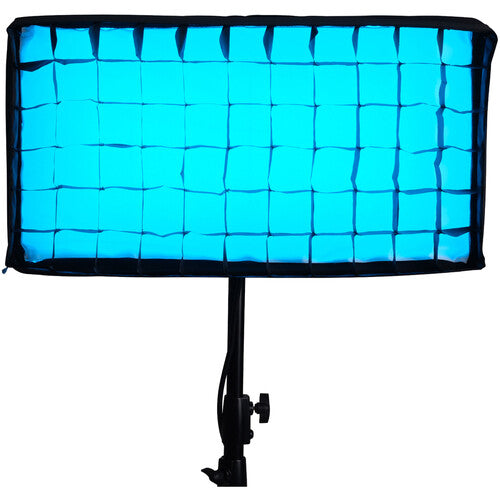

The panel's high CRI/TLCI ratings of 96/97 provide high color accuracy and rendering, and multiple onboard and wireless control options make for easy creative adjustments. Fifteen built-in special effects are included for hue loop, CCT loop, intensity Loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding. Additionally, two diffusers, a softbox, and an eggcrate are also included for modifying and adjusting the panel's output.

Details
  • Designed for studio, film, and TV productions, this thin and lightweight LED panel provides a bright illumination of 12,830 lux at 3.3'.
  • Variable color temperature range of 2700 to 7500K and 0 to 100% dimming.
  • High CRI/TLCI ratings of 96/97 provide high color accuracy and rendering.
  • 15 built-in special effects for hue loop, CCT loop, intensity loop, flash, pulse, storm, police car, TV, paparazzi, candle/fire, disco, bad bulb, firework, explosion, and welding.
  • Multiple presets for LEE filters.
  • Silent passive cooling for working on sets with sound recording.
  • Built-in battery plates for V-mount batteries.
  • DMX/RDM port, Bluetooth, and wireless RF control options.
  • 4-pin locking plate design to combine panels together to make a larger light source.

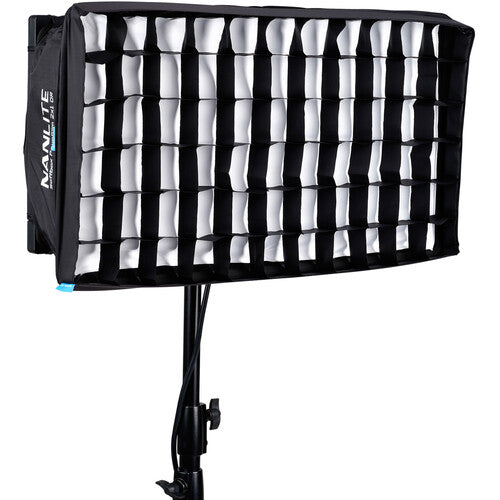

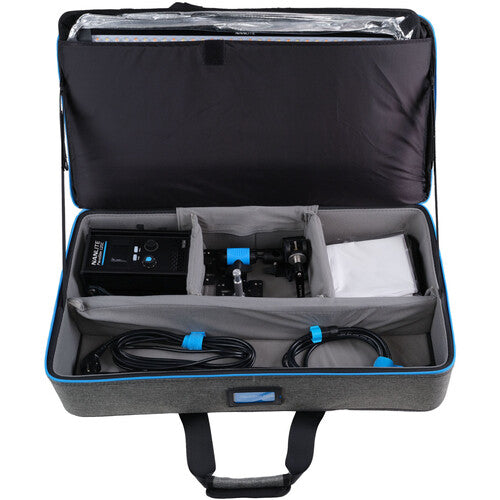

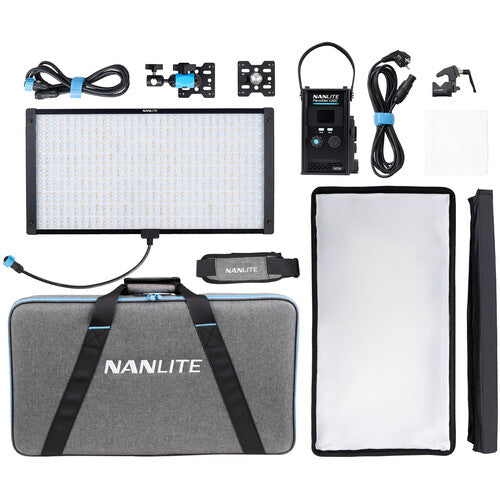

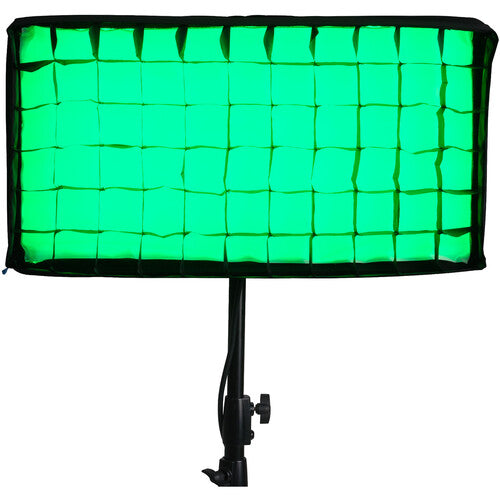

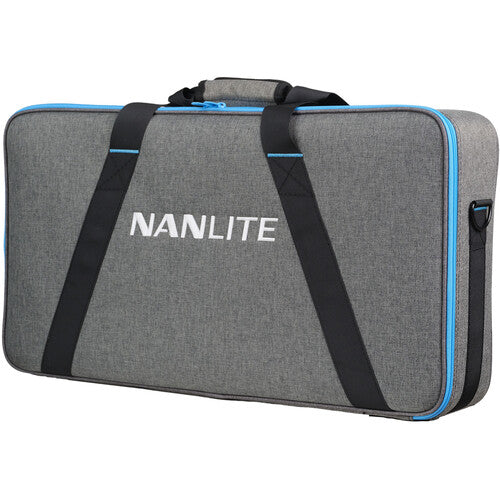

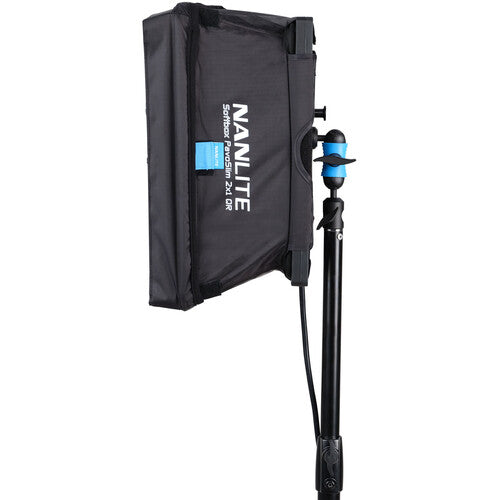

  • Includes two diffusers, a softbox, an eggcrate, and a soft case.
  • Dual-voltage design for worldwide use.
Technical Specs

Item Type

1x LED Array LED Light Panel

Included Light Modifier

1x Softbox
1x Grid/Louver

Included Storage Case

Yes

Photometrics at 3.3' / 1 m

60° at 5600K: 1191 fc / 12,830 Lux (Unmodified)

Color Temperature

2700 to 7500K

Color Modes

RGB, Daylight, Tungsten

Color Accuracy Standard

CRI 96
TLCI 97

Dimming

App-Controlled / Controller Included / DMX / RDM
 • 0 to 100%

Front Accessory Mount

Proprietary

Wireless Remote Control Type

Bluetooth (Nanlink)
Proprietary Wireless *Remote Not Included
Wireless DMX *Remote Not Included
CRMX (LumenRadio) *Remote Not Included

Show More

Power Source

AC Power (Cable Included)
Battery (Not Included)

Battery Plate Type

2x V-Mount (Built-In)

Battery

1x V-Mount Rechargeable (Not Included)

Input Power

24 VDC
100 to 240 VAC, 50 / 60 Hz

Power Consumption

120 W

Fixture Mounting

Proprietary

Light Fixture

Item Type

1x LED Array LED Light Panel

Included Light Modifier

1x Softbox
1x Grid/Louver

Included Filters

Diffusion, Soft Diffusion

Included Storage Case

Yes

Photometrics

60° at 5600K:
1191 fc / 12,830 Lux at 3.3' / 1 m (Unmodified)

Color Temperature

2700 to 7500K

Color Modes

RGB, Daylight, Tungsten

Color Accuracy Standard

CRI 96
TLCI 97

Dimming

App-Controlled / Controller Included / DMX / RDM
 • 0 to 100%

Cooling System

No

Built-In Flash

No

Preprogrammed Effects

Yes

Umbrella Mount

No

Front Accessory Mount

Proprietary

Connectivity

Wireless Remote Control Type

Bluetooth (Nanlink)
Proprietary Wireless *Remote Not Included
Wireless DMX *Remote Not Included
CRMX (LumenRadio) *Remote Not Included

Mobile App Compatible

Yes: Android & iOS
App Name: Nanlink
Functionality: Adjust Settings, Remote Control, Setup

Wireless Frequency

2.4 GHz

Power & I/O

Power Source

AC Power (Cable Included)
Battery (Not Included)

Inputs/Outputs

Light Fixture
To Power Supply/Controller: 1x Built-In Cable with Unspecified Power Input

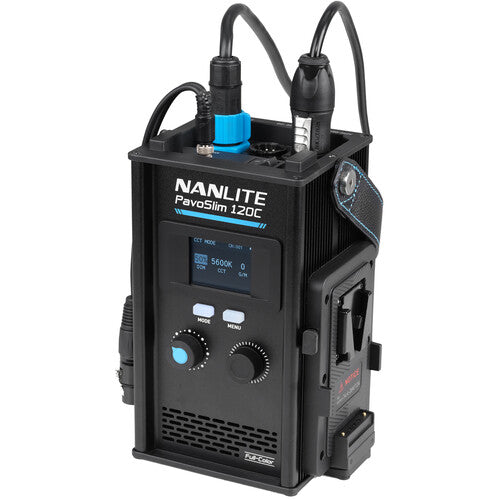

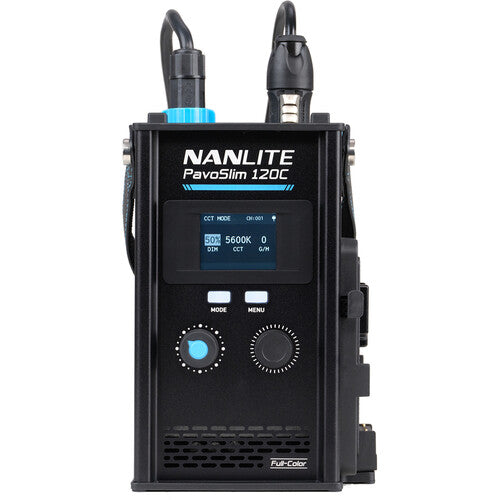

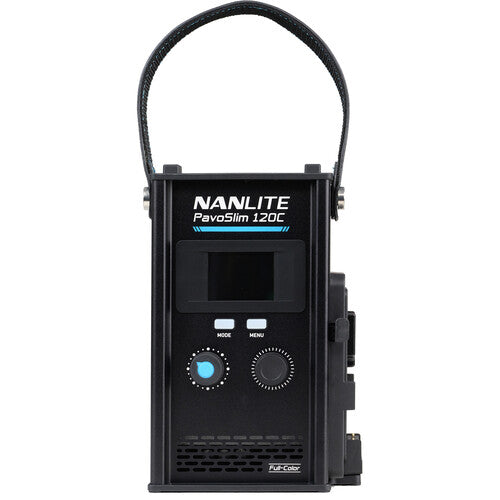

Power Supply/Controller
To Light Fixture: 1x Unspecified Power Output
1x Unspecified AC Power Input
1x XLR 4-Pin Battery/Power Input (24 VDC)
1x 1/8" / 3.5 mm Female DMX Input
*Adapter Required (Not Included)

Battery Plate Type

2x V-Mount (Built-In)

Battery

1x V-Mount Rechargeable, 14.4 to 26 VDC (Not Included)

Input Power

24 VDC
100 to 240 VAC, 50 / 60 Hz

Included Adapter / Cable

Yes

Inline Switch

No

Power Pass-Thru

No

Power Consumption

120 W

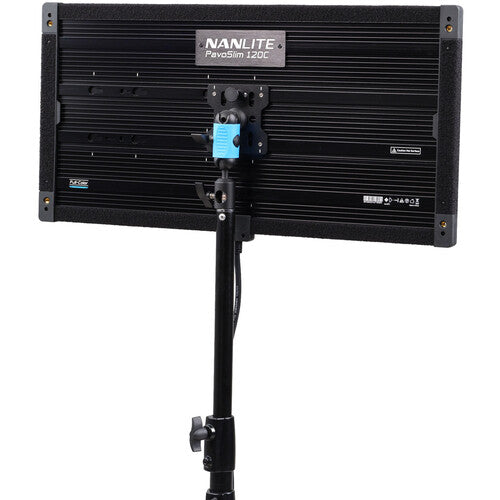

Mounting

Fixture Mounting

Proprietary

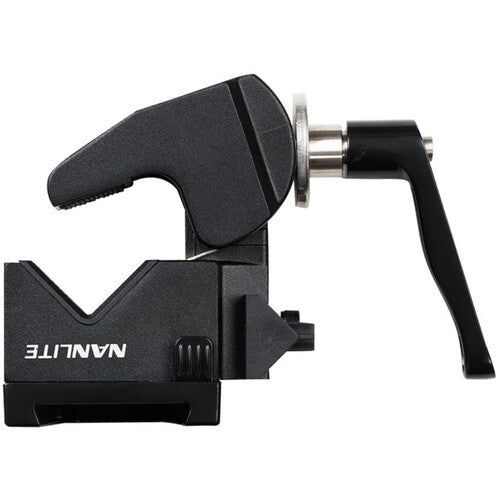

Included Adapter

1x Non-Swivel Mount: 5/8" Stud to Proprietary
1x Ball Head Mount: 5/8" Receiver to Proprietary

General

Display

Yes

Environmental Resistance

No

Dimensions

23.7 x 12 x 0.7" / 60.2 x 30.6 x 1.9 cm (Fixture)

Weight

2.07 lb / 0.94 kg (Fixture)
